Our complete range of robotic tool changing solutions was designed to increase the functionality, flexibility and productivity of your robotic work cell.

Tool changing systems for robots allow for rapid, reliable and automatic changing between several different tools on the same robot or between two different robots. They minimize further down time costs due to repairs as well as potential re-calibration, programming and plumbing errors that could damage your tooling. At the same time, they increase production throughput by minimizing equipment downtime.

Material handling, assembly, load / unload of CNC machines, palletizing, inter-press transfer, spot welding, arc welding, dispensing, material removal, automatic mold change… No mather what your application can be, there is a dedicated robotic tool changing solution for it. Satisfied customers have been giving great feedback about them for 20+ years.



Tool changer picture

Components


Affichage 1 - 50 sur 66

Sigma 3.1heavy payload

Sigma the foolproof tool changer range

Sigma 3.1 tool changers offer a higher payload capacity up to 360kg. Their low profile design reduces inertial forces.

7.340 kg
360 kg
1/4" BSPP
6 bar ±1

Sigma 5.1heavy payload

Sigma the foolproof tool changer range

Sigma 5.1 tool changers offer a higher payload capacity up to 500kg. Their low profile design reduces inertial forces.

11.340 kg
500 kg
1/4" BSPP
6 bar ±1

Sigma 8.1heavy payload

Sigma the foolproof tool changer range

Sigma 8.1 tool changers offer a higher payload capacity up to 800kg. Their low profile design reduces inertial forces.

21.180 kg
800 kg
1/4" BSPP
6 bar ±1

Epsilon E31.5small payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

0.130 kg
10 kg
G1/8
6 bar ±1

Epsilon E50small payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

0.590 kg
25 kg
G1/8
6 bar ±1

Epsilon E63small payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

0.600 kg
50 kg
G1/8
6 bar ±1

Epsilon E80medium payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

2.740 kg
90 kg
G1/8
6 bar ±1

Epsilon E100medium payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

2.680 kg
120 kg
G1/8
6 bar ±1

Epsilon E125heavy payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

9.220 kg
350 kg
G1/8
6 bar ±1

Epsilon E125LPmedium payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

5.430 kg
225 kg
G1/8
6 bar ±1

Epsilon E160heavy payload

Epsilon exceptional lifting force for a small footprint

The Epsilon Tool Changer line provides a strong and reliable method for a manipulator (i.e., a robot) to quickly change between different tools/end-effectors. With Applied Robotics, Inc.’s modular…

13.890 kg
525 kg
G1/8
6 bar ±1

S-EM-R-U-2V1/2BSPneumatic module

Pneumatic module with 2 valved "no leak" fittings (1/2" BSPP ports)

0.62 kg
61 x 76 x 72 mm
2 x 1/2" BSPP
6 bar ±1

S-EM-T-U-2V1/2BSPneumatic module

 S-EM-T-U-2V1/2BS

Pneumatic module with 2 valved "no leak" fittings (1/2" BSPP ports)

0.62 kg
61 x 76 x 73 mm
2 x 1/2" BSPP
6 bar ±1

S-EM-R-U-2VE1/2BS-BFluid module

S-EM-R-U-2VE1/2BS-B

Coolant module (brass) with 2 valved "no leak" fittings (1/2" BSPP ports)

0.62 kg
61 x 76 x 72 mm
2 x 1/2" BSPP
6 bar ±1

S-EM-T-U-2VE1/2BS-BFluid module

S-EM-T-U-2VE1/2BS-B

Coolant module (brass) with 2 valved "no leak" fittings (1/2" BSPP ports)

0.62 kg
51 x 76 x 73 mm
2 x 1/2" BSPP
6 bar ±1

XCF-BAM-RWeldment base

Weldment, base fixture (Metric) - Profile 100x200 mm - Base plate 300x400mm - Height 1200mm

51.00 kg
1200 x 300 x 400 mm
Steel
6 bar ±1

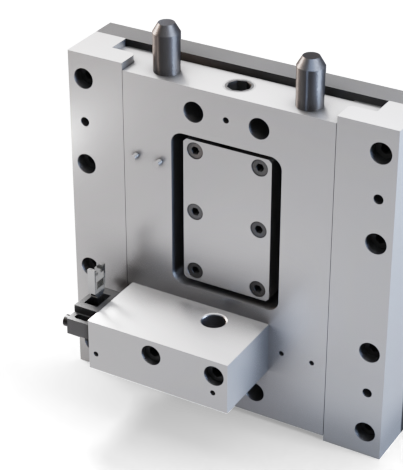

XCF-CA-MMC-NP-NET-02 spring-loaded compliant

Fixture compliant assembly without blank plate , with safety Trojan Key- Version for BUS- No "Tool presence" sensor

14.06 kg
301 x 263 x 119 mm
Aluminum
6 bar ±1

XCF-CA-BPTool Mounting Bracket

Spare bracket for XCF-CA-MMC

5.98 kg
250 x 195 x 98 mm
Aluminum
6 bar ±1

S.1-EM-R-E-SEL-L38-02-SModule électrique

Control module (3 Control valves, 3 pressure sensors, TC control by I/O, safety sensor "Tool presence", Profinet connection to tool), M23-19pins 90° connector, M12-4 pins D-Coded connector (Profinet…

1.65 kg
63 x 233 x 64 mm
3 x KJ06 1/8" 6mm
6 bar ±1

S-EM-T-E-HIKVAEPG-00Power module

Electrical module with 3 contacts HIKVA - PG36

1.76 kg
55 x 195 x 122 mm
6 bar ±1

S-EM-R-E-HIKVROBI-01Power module

Power Module 200A robot base side RobiFix

4.08 kg
118 x 169 x 208 mm
200 A

S-EM-R-U-SP-1V1/2BS-1V6 Pneumatic module

S-EM-R-U-SP-1V1_2BS-1V6 module

Air module 1/2BSPP with 6mm fitting ready to mount on Sigma robot side 3.

0.70 kg
59 x 109 x 75 mm
1 x 1/2" BSPP
6 bar ±1

S-EM-R-U-MULTI-4x1/2BSPneumatic module

1 G1/2 Pneumatic and 2 G1/2 hydraulics modules for Sigma robot changer

0.28 kg
59 x 109 x 98 mm
4 x 1/2" BSPP
6 bar ±1

S-EM-R-U-1VM20-1V6Pneumatic module

Pneumatic module (robot side) for DN12 tubing and D4/6 tubing.

0.28 kg
51 x 76 x 73 mm
1 x M20
6 bar ±1

S-EM-R-U-1VM16-1V6-CIP5Pneumatic module

Pneumatic module (robot side) for M16 tubing. Air input: max. 6 bar à +/-1 bar. TC Air Feed 1/8"BSPP - 6mm piping - CIP function (check valve) included - S5/S8 version.

0.30 kg
51 x 93 x 73 mm
1 x M16
6 bar ±1

S-EM-R-U-1VE-OIL-01Fluid module

Module for oil with Maku fitting (21KLAW13MPN)

0.34 kg
61 x 76 x 78 mm
1 x MAKU
6 bar ±1

S-EM-R-U-2VE-2M20Fluid module

Coolant module (robot side) with 2 valved "no leak" stop drop fittings M20x1.5

0.55 kg
61 x 76 x 72 mm
2 x M20
6 bar ±1

S.1-EM-R-E-3VS-B02-SElectrical module

Electrical safety control module for S3/S5/S8 TC standard, 3 valves, 3 pressure sensors, safety switch "Tool presence", Profinet interface, MS 3102A24-28P (24 pins connector) for I/O, D-Coded M12…

1.66 kg
63 x 233 x 99 mm
3 x KJ06 1/8" 6mm
6 bar ±1

S-EM-R-E-DNT-3VS-REVAMPElectrical module

DeviceNet module ( bus connection to tool, 3VS version, 7/8" 5 pins Bus connector and 7/8" 4 pins 24VDC connector, M23-19 pins connector (WG I/O), 3 Control valves, TC control by remote I/O module,…

1.96 kg
64 x 246 x 163 mm
3 x KJ06 1/8" 6mm
6 bar ±1

S-EM-R-E-ETH-V19-3VS-01-AElectrical module

Ethernet/IP control module (3 Control valves, 3 pressure sensors, TC control by remote I/O module, safety sensor "Tool presence", Ethernet/IP connection to tool), 7/8" male 5pins (24VDC), D-Coded…

1.96 kg
65 x 232 x 148 mm
2 x KJ06 1/8" 6mm
1 x KQ2 1/8" 8mm
6 bar ±1

S-EM-R-E-ETH-BF-V19-3VS-01-AElectrical module

Ethernet/I Body Flexor control module (3 Control valves, 3 pressure sensors, TC control by remote I/O module, safety sensor "Tool presence", Ethernet/IP connection to tool), 7/8" male 5pins (24VDC),…

1.96 kg
65 x 234 x 148 mm
2 x KJ06 1/8" 6mm
1 x KQ2 1/8" 8mm
6 bar ±1

S.5-EM-R-E-3xIC-01Electrical module

Robot-side module dedicated to SPR applications (5 contacts of 25A, 2x7A, 32 x 5 contacts of 5A and 4x7A with 3 Intercontec IC17-IC17 and IC6 bases)

1.00 kg
59 x 187 x 143 mm
Aluminum…
6 bar ±1

S-EM-R-E-IC6-6x25_A17_M23.19Electrical module

S-EM-R-E-IC6-6x25_A17_M23.19 module

Sigma Electrical module with 30 contacts at 5A, 4 contacts at 25A , 1x6 pin interconnectron plug + 1x17 pin Amphénol plug and 1 M23.19 plug.

0.92 kg
59 x 135 x 100 mm
Aluminum…
6 bar ±1

S-EM-R-E-A17-A6-B02-AElectrical module

Robot servo electrical module for welding gun with brake and resolver, Amphenol straight connector 17 pins (MS-3102A20-29P) and 6 pins (MS-3102A20-17P)

0.90 kg
59 x 128 x 100 mm
Aluminum…
6 bar ±1

S.5-EM-R-E-IC8-IC12-7-8-M12DModule électrique

Robot side module for BOLLHOFF gun application with: One M8-COD D female connector (Profinet), one 7/8" 5-point male connector (24V), one M23-8-point male connector (Motor) and one M23 male connector…

1.00 kg
59 x 212 x 142 mm
Aluminum…
6 bar ±1

S-EM-R-E-A4B-A17B-A3D-2xM12.5Electrical module

Servo module, including 4 pins and 17 pins Amphenol connectors and Amphenol 3 pins connector as well as a M12 5 pins connector (KSR), a M12 5 pins socket connector (Current measurement (MF).Gold…

0.94 kg
59 x 128 x 100 mm
Aluminum…
6 bar ±1

S-EM-E-R-CUC-TK-4P-S5-S8Electrical module

Robot electrIcal module for Couple/Uncouple sensor on male M12 4 pins connector

0.26 kg
58 x 108 x 43 mm
Aluminum…
6 bar ±1

S-EM-R-E-HIKVA-PG36-3TROUSPower module

Robot electrical module for S3/S5 - 3 power contacts for PG36 and 3 contacts high power module for 3x35² cable

2.33 kg
55 x 195 x 122 mm
200 A

S-EM-R-E-HIKVA-MTPower module

Robot electrical module for S3/S5 - 3 power contacts for grounding (95 mm²) and grounding measurement (1.5 mm²)

2.70 kg
62 x 258 x 156 mm
200 A

S-EM-T-U-SP-M16Pneumatic module

Air module with fitting M16X1.5 (Spacer version)

0.54 kg
65 x 109 x 104 mm
1 x M16
6 bar ±1

S-EM-T-U-1V1/4Pneumatic module

Pneumatic module (tooling side) with 1 valved "no leak" fitting - 1/4"

0.28 kg
56 x 76 x 60 mm
1 x 1/4" BSPP
6 bar ±1

S-EM-T-U-1V1/4-1V1/2BPneumatic module

Pneumatic module (tooling side) with 2 valved "no leak" fittings - 1/4"BSPP-1/2"BSPP

0.34 kg
56 x 76 x 60 mm
1 x 1/4" BSPP, 1 x 1/2" BSPP
6 bar ±1

S-EM-T-U-1V8-6Pneumatic module

Air fitting tooling side for tubing diameter 6/8

0.28 kg
56 x 76 x 77 mm
1 x 8/6 mm
6 bar ±1

S-EM-T-U-MULTI-SEL-REVOZ-01Fluid module

Coolant module IN/OUT with 4 fittings M20x1.5.

0.28 kg
65 x 109 x 87 mm
3 x M20
6 bar ±1

S-EM-T-U-2VE1_2BS-BFluid module

S-EM-T-U-2VE1_2BS-B module

Coolant module (brass) with 2 valved "no leak" fittings (1/2" BSPP ports)

0.62 kg
56 x 76 x 50 mm
2 x 1/2" BSPP
6 bar ±1

S-EM-T-U-2VE-2M20Fluid module

Coolant module (tool side) with 2 valved "no leak" stop drop fittings M20x1.5

0.60 kg
58 x 76 x 74 mm
2 x M20
6 bar ±1

S-EM-T-U-1VE-OIL-01Fluid module

Module for Oil with Maku fitting ref 21SLAW13MPN

0.34 kg
56 x 76 x 85 mm
1 x MAKU
6 bar ±1

S.1-EM-T-E-M-B02-AElectrical module

Tool electrical module for S3/S5, MS 3102E24-28S straight box mounting 24 sockets receptacle for I/O, D-coded M12 mating connector with cable for Profinet and M12 connector for safety switch. Gold…

0.88 kg
65 x 131 x 94 mm
Aluminum…
6 bar ±1

S.1-EM-T-E-M-B02-BElectrical module

Tool electrical module for S3/S5, MS 3102E24-28S straight box mounting 24 sockets receptacle for I/O, D-coded M12 socket for Profinet and M12 connector for safety switch

0.88 kg
65 x 131 x 94 mm
Aluminum…
6 bar ±1

S.1-EM-T-E-PNT-3VS-M12LElectrical module

Electrical module for Tool Adaptor S3/S5 - PROFINET 3VS Version - 1.3m câbles with M12 5 sockets COD L (2x 24VDC) mating connector and with D-Coded M12 4 pins (Profinet), M12 8 CTS connector for…

1.00 kg
64 x 184 x 78 mm
Aluminum…
6 bar ±1
