Many users of encoder feedback have been searching for a technology that combines the hysteresis-free high accuracy performance of an optical encoder, the robustness of an inductive encoder, and the large mounting tolerance of a magnetic encoder. For these FLUX introduces the GMI encoder design. The Giant Magneto Impedance principle is a completely different physical phenomenon than the magnetic resistance (Anisotropic AMR, Tunnel TMR, Giant GMR, etc.) principle. The company FLUX GmbH researched, patented, and developed a new proprietary technology for length and angle measurement:- Giant Magnetic Impedance Technology.

High-precision magnetic encoder by PES SA for industrial automation

Series

SPS category

GMI ROTARY
Precision and Versatility
Stator Size : 55 to 150 mm
Rotor Size : 39 to 134 mm
Resolution : 21 to 23 bits/rev
Accurary : ±36to ±8”
Protection : IP67

SCS category

GMI ANGLE
Accuracy in Arcseconds
Stator Size : 96 to 250 mm
Rotor Size : 80 to 230 mm
Resolution : 23 to 25 bits/rev
Accurary : ±8 to ±3”
Protection : IP67

LT category

INDUCTIVE
Reliability in Narrow Spaces
Stator Size : 34 to 96 mm
Rotor Size : 22 to 80 mm
Resolution : 17 to 20 bits/rev
Accurary : ±105 to ±45”
Protection : IP00

GP(S) category

INDMAX
Inductive Encoder Technology Unleashed
Stator Size : 125 to 375 mm
Rotor Size : 125 to 375 mm
Resolution : 21 to 23 bits/rev
Accurary : ±25 to ±7”
Protection : IP65

* Customizable

Affichage 1 - 42 sur 42

GMI-ANG-09621 bits

Magnetic encoder GMI-ANG-096 for industrial robust resolution integration

GMI® Angle Encoder Arcseconds in All Environments

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.

96 mm

10.80 mm

IP67

2’000 rpm

View Product

GMI-ANG-18022 bits

Magnetic encoder GMI-ANG-180 for industrial robust resolution integration

GMI® Angle Encoder Arcseconds in All Environments

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.

180 mm

10.80 mm

IP67

2’000 rpm

View Product

GMI-ANG-25023 bits

Magnetic encoder GMI-ANG-250 for industrial robust resolution integration

GMI® Angle Encoder Arcseconds in All Environments

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.

250 mm

10.80 mm

IP67

2’000 rpm

View Product

GMI-ROT-055-A11-AL20 bits

Magnetic encoder GMI-ROT-055-A11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-055-A11-ST20 bits

Magnetic encoder GMI-ROT-055-A11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-055-B11-AL20 bits

Magnetic encoder GMI-ROT-055-B11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-055-B11-ST20 bits

Magnetic encoder GMI-ROT-055-B11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-055-C11-AL20 bits

Magnetic encoder GMI-ROT-055-C11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-055-C11-ST20 bits

Magnetic encoder GMI-ROT-055-C11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

55 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-069-A11-AL20 bits

Magnetic encoder GMI-ROT-069-A11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

69 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-069-A11-ST20 bits

Magnetic encoder GMI-ROT-069-A11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

69 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-069-B11-AL20 bits

Magnetic encoder GMI-ROT-069-B11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

69 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-069-B11-ST20 bits

Magnetic encoder GMI-ROT-069-B11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

69 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-080-A11-AL21 bits

Magnetic encoder GMI-ROT-080-A11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

80 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-080-A11-ST21 bits

Magnetic encoder GMI-ROT-080-A11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

80 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-080-B11-AL21 bits

Magnetic encoder GMI-ROT-080-B11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

80 mm

7.50 mm

IP67

6’000 rpm

View Product

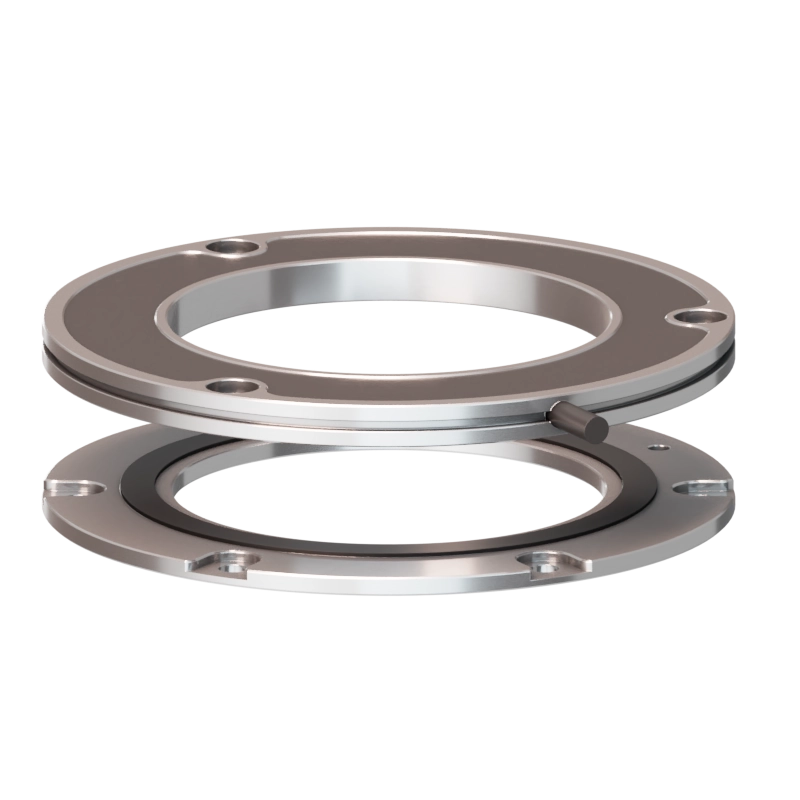

GMI-ROT-080-B11-ST21 bits

Magnetic encoder GMI-ROT-080-B11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

80 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-096-A11-AL22 bits

Magnetic encoder GMI-ROT-096-A11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

96 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-096-A11-ST22 bits

Magnetic encoder GMI-ROT-096-A11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

96 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-096-B11-AL22 bits

Magnetic encoder GMI-ROT-096-B11-AL for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

96 mm

7.50 mm

IP67

6’000 rpm

View Product

GMI-ROT-096-B11-ST22 bits

Magnetic encoder GMI-ROT-096-B11-ST for encoder resolution absolute compact

GMI® Rotary Encoder: Precision Unleashed

Make your application stand out with a precise, versatile, all-in-one solution.

96 mm

7.50 mm

IP67

6’000 rpm

View Product

IND-ROT-034-A21-FR17 bits

Magnetic encoder IND-ROT-034-A21-FR for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

34 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-034-A22-AL17 bits

Magnetic encoder IND-ROT-034-A22-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

34 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-034-C2108-AL17 bits

Magnetic encoder IND-ROT-034-C2108-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

34 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-036-A21-FR17 bits

Magnetic encoder IND-ROT-036-A21-FR for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

36 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-036-A22-AL17 bits

Magnetic encoder IND-ROT-036-A22-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

36 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-036-C2110-AL17 bits

Magnetic encoder IND-ROT-036-C2110-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

36 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-045-A21-FR18 bits

Magnetic encoder IND-ROT-045-A21-FR for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

45 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-045-A22-AL18 bits

Magnetic encoder IND-ROT-045-A22-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

45 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-045-C2115-AL18 bits

Magnetic encoder IND-ROT-045-C2115-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

45 mm

7.80 mm

IP00

6’000 rpm

View Product

IND-ROT-055-A21-WB19 bits

Magnetic encoder IND-ROT-055-A21-WB for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

55 mm

5.80 mm

IP00

6’000 rpm

View Product

IND-ROT-055-C21-WB-AL19 bits

Magnetic encoder IND-ROT-055-C21-WB-AL for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

55 mm

5.80 mm

IP00

6’000 rpm

View Product

IND-ROT-069-A2119 bits

Magnetic encoder IND-ROT-069-A21 for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

69 mm

5.80 mm

IP00

6’000 rpm

View Product

IND-ROT-080-A2120 bits

Magnetic encoder IND-ROT-080-A21 for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

80 mm

5.80 mm

IP00

6’000 rpm

View Product

IND-ROT-096-A2120 bits

Magnetic encoder IND-ROT-096-A21 for absolute encoder magnetic integration

INDUCTIVE Rotary Encoder: Precision in Compact Form

An absolute encoder of highest quality in the smallest possible size.

96 mm

5.80 mm

IP00

6’000 rpm

View Product

GMI-ANG-16022 bits

Magnetic encoder GMI-ANG-160 for industrial robust resolution integration

GMI® Angle Encoder Arcseconds in All Environments

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.

160 mm

10.80 mm

IP67

2’000 rpm

View Product

IND-MAX-12519 bits

Magnetic encoder IND-MAX-125 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

125 mm

10.95 mm

IP67

6’000 rpm

View Product

IND-MAX-16020 bits

Magnetic encoder IND-MAX-160 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

160 mm

10.95 mm

IP67

6’000 rpm

View Product

IND-MAX-18020 bits

Magnetic encoder IND-MAX-180 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

180 mm

10.95 mm

IP67

6’000 rpm

View Product

IND-MAX-20022 bits

Magnetic encoder IND-MAX-200 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

200 mm

10.95 mm

IP67

6’000 rpm

View Product

IND-MAX-25022 bits

Magnetic encoder IND-MAX-250 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

250 mm

10.95 mm

IP67

6’000 rpm

View Product

IND-MAX-37522 bits

Magnetic encoder IND-MAX-375 for position encoder robust integration

INDUCTIVE MAX Encoder : For Extreme Conditions

IND-MAX inductive angle encoders provide robust, high-precision measurement in extreme environment applications across land, sea, and air.

375 mm

14.20 mm

IP67

6’000 rpm

View Product
