Can you transmit HD video through a rotary union?

Yes. Models with the 'E1G' option support GigE-Vision, HDMI, and HD-SDI, often combined with other signals or power.

Can connectors be attached directly to the slip ring?

Some models offer direct connectors. PES can design custom terminations or mechanical interfaces as needed.

Do you offer hybrid pneumatic and electrical solutions?

Yes, hybrid rotary unions allow both electrical and fluidic (pneumatic, hydraulic) transmission in one unit.

Rotary collectors adapted to all your projects | Product Engineering Services

Q: Do you offer flat models?

We do not produce PCB-style pancake models. Our flat versions allow multiple circuits in minimal height using concentric assemblies.

Q: Can fiber optics pass through your rotary unions?

Yes, we offer Fiber Optic Rotary Joints (FORJs) using prisms. They can be combined with electrical unions but not with through-bore types.

Q: Can sensitive signals and motor power be combined?

Yes. Hybrid cables can combine power and signal types like DRIVE-CliQ, PowerLink, EtherCAT, with shielding to prevent interference.

Q: What are your delivery times?

200 references in stock: 2–3 days. Custom: 8 to 14 weeks depending on specs.

Q: Do your slip rings require maintenance?

No. Our slip rings are maintenance-free for 10 to 100 million revolutions depending on the model.

Q: Do you offer UL-certified solutions?

UL-compliant models are available on request, and full UL certification is possible depending on the project.

Slip rings are used in system requiring transmission of electrical power and/or signals from a stationary to a bi-directional, intermittent or continiously rotating structure.

Designed to deliver flexible, cost-effective, reliable and high quality solutions, the units are available in many standard configurations. Numerous customized versions can be provided.

They meet customers expectations within a wide range of applications such as high definition video systems, radar antennas, medical device, renewable energy, food & beverage...

PDF - catalog - Slip Rings

Our slip ring FAQ +

What is the maximum rotation speed?

As a standard, our rotary unions are rated for continuous operation at 600 rpm. The maximum speed largely depends on the usage cycle – higher speeds can lead to overheating and premature wear. It involves a trade-off between performance and lifespan. In general, we can easily achieve speeds of up to 1500 rpm while maintaining reasonable lifespan.

Do you offer flat models?

We do not produce what are commonly referred to as "pancake" models with concentric rings on PCBs. Our flat models involve a concentric assembly of various unions, allowing for multiple circuits within a limited height.

Can fiber optics pass through your rotary unions?

Fiber optics use an independent system. Fiber Optic Rotary Joints (FORJs) utilize prisms to guide light within the rotating connection. They can be compact and combined with electrical rotary unions. Monochannel or multichannel FORJs can be combined, but they cannot have a through-bore.

Can we transmit HD video through a rotary union?

Yes, even in standard models, our rotary unions with the "E1G" Gigabit option can transmit GigE-Vision signals. It's also possible to transmit HDMI or HD-SDI signals with appropriate models. These signals can be combined with other data or power signals.

Can sensitive signals and motor power be combined in a single rotary union?

Yes, many applications combine sensitive signal transmission with power transmission. For example, for servo motors, power is often combined with measurement or communication signals in the same cable. Hybrid cables can be directly integrated or "emulated" with commercial cables, allowing integration of various standards: DRIVE-CliQ, PowerLink, Sercos, Ethercat, etc. The arrangement of ground/shield paths and power distribution is carefully designed to avoid interference.

Can terminals or connectors be directly attached to the slip ring?

Our rotary union manufacturing process typically involves cable output. Some models like SVTS B offer terminals or connectors directly on the union. PES also has an engineering department and wiring workshop capable of creating any required connectivity (plugs, bases, terminals) according to your needs, while adapting mechanical interfaces.

What are your delivery times?

200 references in stock available within 2-3 days, non-stocked products: 6-8 weeks, custom design: 8 to 14 weeks (depending on specifications).

Do your slip rings require maintenance?

Our slip rings are guaranteed to be maintenance-free throughout their entire lifespan (10 to 100 million revolutions, depending on the model).

Are there solutions that allow both pneumatic and electrical connections in the same unit?

Yes, we offer hybrid solutions that combine electrical needs with all types of fluids in a single integrated unit.

Do you offer UL-certified solutions?

UL-compliant products available upon request, with UL certification possible.

Are your products CE certified?

Yes, all our slip rings are CE certified.

Options

SVTS A
Capsule, compact models
Diameter out : 12 to 25 mm
Circuits : up to 56 circuits
Current : 1A to 20A*
Speed : up to 5000 rpm*
Options : Ethernet, RF

Price : 80 - 600€**

SVTS B
Faston terminals, high currents
Diameter out : 32 to 77 mm
Circuits : up to 8 circuits
Current : up to 20A*
Protection : IP51/IP65
Speed : 400 to 600 rpm*

Price : 150 - 500€**

SVTS C
Through-bore, multiple combinations
Diameter in : 3 to 100 mm
Diameter out : 17 to 203 mm
Circuits : up to 96 circuits
Current : 10A to 20A*
Options : Ethernet, Air passage

Price : 115 - 6000€**

SVTS D
Stainless steel housing, sealed
Diameter out : 73 to 130 mm
Circuits : up to 96 circuits
Current : 5A to 15A*
Speed : 400 rpm*
Options : Anti-condensation

Price : from 1500€**

SVTS E
Open, high currents
Diameter in : 25 to 60 mm
Diameter out : 74 to 130 mm
Circuits : 3 circuits
Current : up to 60A*
Options : Frameless

Price : 250 - 800€**

SVTS F
Flat models, minimal height
Diameter in : 40 mm
Diameter out : 180 mm
Circuits : 20 circuits
Current : 15A*

Price : from 1800€**

* Customizable
** Excluding discount

Affichage 1001 - 1050 sur 1064

Protection rating

Data transfert

Current

Mounting

Nominal Speed

Number of circuits

Diameter

Voltage

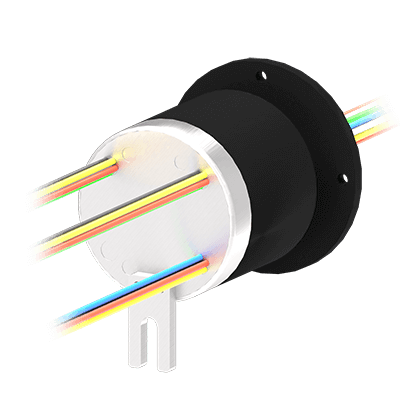

SVTS D 01-U-A-00/066 circuits

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

Slip ring for transmission of electrical power and/or electrical signals for demanding conditions.

Our product range

Support & Services

Our Solutions

Brands

Our product range

Support & Services

Our Solutions

Brands

Our Solutions

Assemblies

Support & Services

Components

Slip rings

Our slip ring FAQ +

What is the maximum rotation speed?

Do you offer flat models?

Can fiber optics pass through your rotary unions?

Can we transmit HD video through a rotary union?

Can sensitive signals and motor power be combined in a single rotary union?

Can terminals or connectors be directly attached to the slip ring?

What are your delivery times?

Do your slip rings require maintenance?

Are there solutions that allow both pneumatic and electrical connections in the same unit?

Do you offer UL-certified solutions?

Are your products CE certified?

Options

SVTS A Capsule, compact models

SVTS B Faston terminals, high currents

SVTS C Through-bore, multiple combinations

SVTS D Stainless steel housing, sealed

SVTS E Open, high currents

SVTS F Flat models, minimal height

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

6 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

12 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

18 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

24 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

30 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

36 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

42 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 75.0 mm, 65 Stainless Steel Housing, 6 to 48 circuits

250-400 rpm

48 x 5A

IP65

75.0 mm

Flange / Capsule mounting, rugged design, O.D. 87.0 mm, 65 Stainless Steel Housing, 6 to 96 circuits

250-400 rpm

12 x 2A

IP65

87.0 mm

Flange / Capsule mounting, rugged design, O.D. 87.0 mm, 65 Stainless Steel Housing, 6 to 96 circuits

250-400 rpm

24 x 2A
