Encoder | GMI® Angle | GMI-ANG-180

GMI® Angle Encoder Arcseconds in All Environments

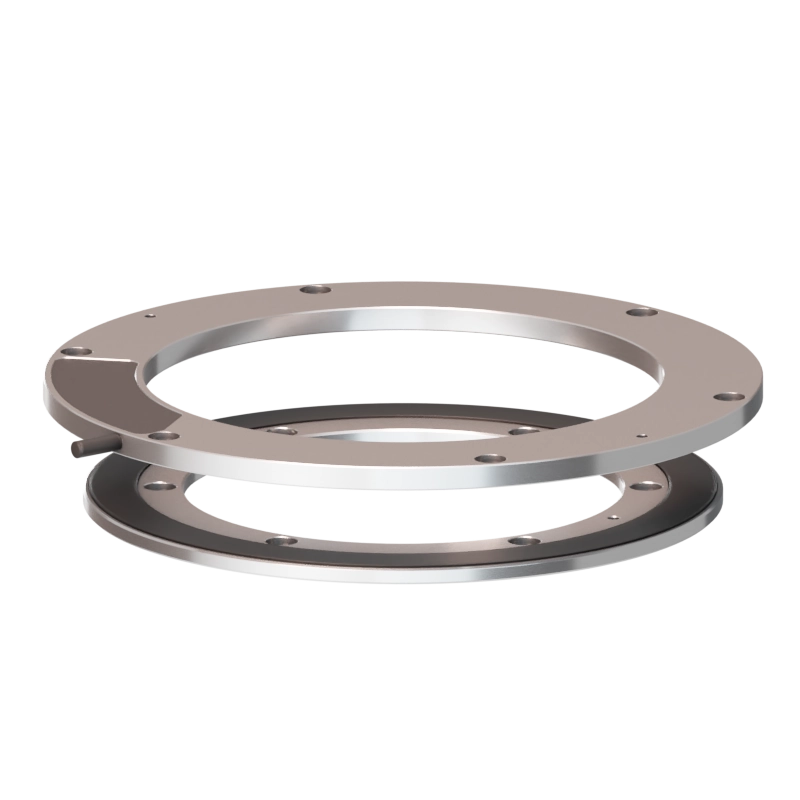

image of Encoder GMI-ANG-180

Hysteresis-free performance and accuracy in arcseconds for even the most demanding applications.


Discover the pinnacle of precision with GMI® encoders from Flux. Their exceptional arc-second performance meets the demands of the most critical industrial applications. These encoders, with their robust IP67 stainless steel construction and resolution of up to 25 bits, guarantee uncompromising reliability. Easy to install with Plug-and-Play functionality, GMI® encoders offer an adaptive solution for maximum performance in any environment. Opt for uncompromising precision with GMI® encoders from Flux.

Advantages

  • Plug-n-play
  • No field calibration required
  • Wide mounting tolerances
  • High accuracy

Benefits

  • Low installation cost
  • Low integration effort
  • Easy installation

System Data

GMI-ANG-180
TypeAxial, frameless, true absolute Giant Magneto Impedance encoder GMITechnology-FLUX GmbH proprietary
Standard Resolution24 bits
ENOB in entire mounting tolerance range22 bits
High Accuracy±5.5”, 0.001°, ±26µrad
Standard Accuracy±7”, 0.002°, ±35µrad
Thickness10.80
Hysteresisnone
Repeatability1 resolution count
Position update rate and signal latencyReal-time
Power-up Timemax. 0.8 sec

Electrical Data

Supply voltageOptionAV:min.4.35Vdc.max.36Vdc
Option5V:min.4.35Vdc.max.6Vdc
Option24V:min.6Vdc.Max.30Vdc
Reverse polarity protectionyes
Current Consumptionmax. 150 mA @ 25 Vdc, max. 140 mA @ 24 Vdc

Mechanical Data

Stator Base MaterialStainless steel CTE ~ 10 ppm/°C
Stator Weight520.00 g
Rotor Base MaterialStainless steel CTE ~ 10 ppm/°C
Rotor Weight320.00 g
VibrationEN 60068-2-6, 20 g, 55 .. 2000 Hz
ShockEN 60068-2-27, 200 g, 6 ms

Mounting Tolerances

Nominal Axial (air-gap)0.30 mm
Axial Tolerance0.25 mm
Radial Tolerances0.20 mm

Environmental Data

Temperature Range - Standard Operating-20°C .. +85°C
Temperature Range - Standard Storage-20°C .. +85°C
Temperature Range - Extended Operating-40°C .. +105°C
Temperature Range - Extended Storage-55°C .. +125°C
Ingress ProtectionIP67
EMC Immunitycomplies with EN IEC 61000-6-2
EMC Emissioncomplies with EN IEC 61000-6-4
