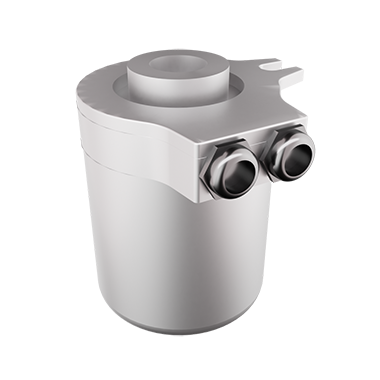

Slip Ring| 3 circuits |SVTS B 03-U-A-02/00

Electrical power, multiple contacts points with faston terminals, O.D. 32/45 mm, 3 to 8 circuits

Slip ring specially suited to transmit electrical power and signals, fastons connectors for easy maintenance and a best thermocouple reading.

SVTS B series is the most compact solution with fibre brush technology. Thanks to pultiple contact points, the faston B Series Slip Rings ensure longer lifespan due to low contact wear rates, while guarateeing low contact resistance. Specially designed for intensive use at high speed and for transmitting power and sensitive signals such as thermocouples ones, these slip rings are particularly suitable for use on flowpack packaging machines. The use of faston type connectors avoids the use of welds that may affect the reading of thermocouple signals.

Moreover, the 65 version makes it washable, guaranteeing protection against low pressure jets if watered from all directions.

Multiple contacts contact points between brushes and rings, low contact electrical resistance, low wear and a long lifetime


  • Suitable for power and signals transmission
  • IP65 version
  • Faston type connectors
  • Low resistive torque
  • Long lifspan and reliable
  • CE et ROHS compliance


  • Electrical power & signals in one unit
  • Easy Connection (Faston connectors) for mitigated replacement time
  • Cost-effective

SVTS B 03-U-A-02/00
Circuits2 x 20A
Outside Diameter32.00 mm
Overall Length (L)28.00 mm
Protection ratingIP 65
Data Transfert<=100Mbit/s
MountingFlange / Capsule

Mechanical features

Nominal speed250-400 rpm
Temperature range-20°C to +80°C (-40°C as option)
Contactgold-gold (alloy)
BearingsMiniature high-precision stainless steel ball bearings

Electrical features

Voltage240 VDC/VAC
CablesSilver plated / PTFE insulated / colour coded
Cables length250 mm standard (other length on request)
Dielectric voltage strength500VAC @ 60Hz @ 60 sec
Insulation resistance>500MOhm/500VDC
Dynamic contact resistance<10mOhm @ 6VDC and 500mA (@ 5rpm)
Expected lifetime107 revolutions (depending on speed, environmetal conditions and size)


  • Cables
  • Materials
  • Mechanical design
  • Flange

Notice :The provided technical data are the higher limits recommended in static condition. To obtain the correct dimensioning of the product, it is necessary to hold account of all the applicable dynamic forces, including the inertia of the manipulator, the configuration of the tools and the external forces applied.
