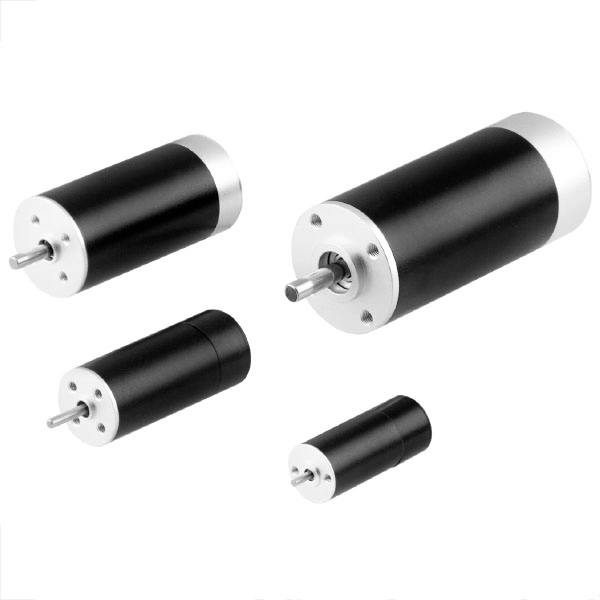

SVTN A 03
The benefits of this technology join the simplicity of use of a brushed DC motor with the longevity of a brushless motor, maintaining cost-effectiveness and ease of integration.
The lack of cogging is typical of the coreless motors and guarantees a reduced ripple torque, a linear correlation between torque, speed, and low inertia.
The miniaturization of the electronics allows maintaining the diameter of the motor unvaried with a slight increase in length.

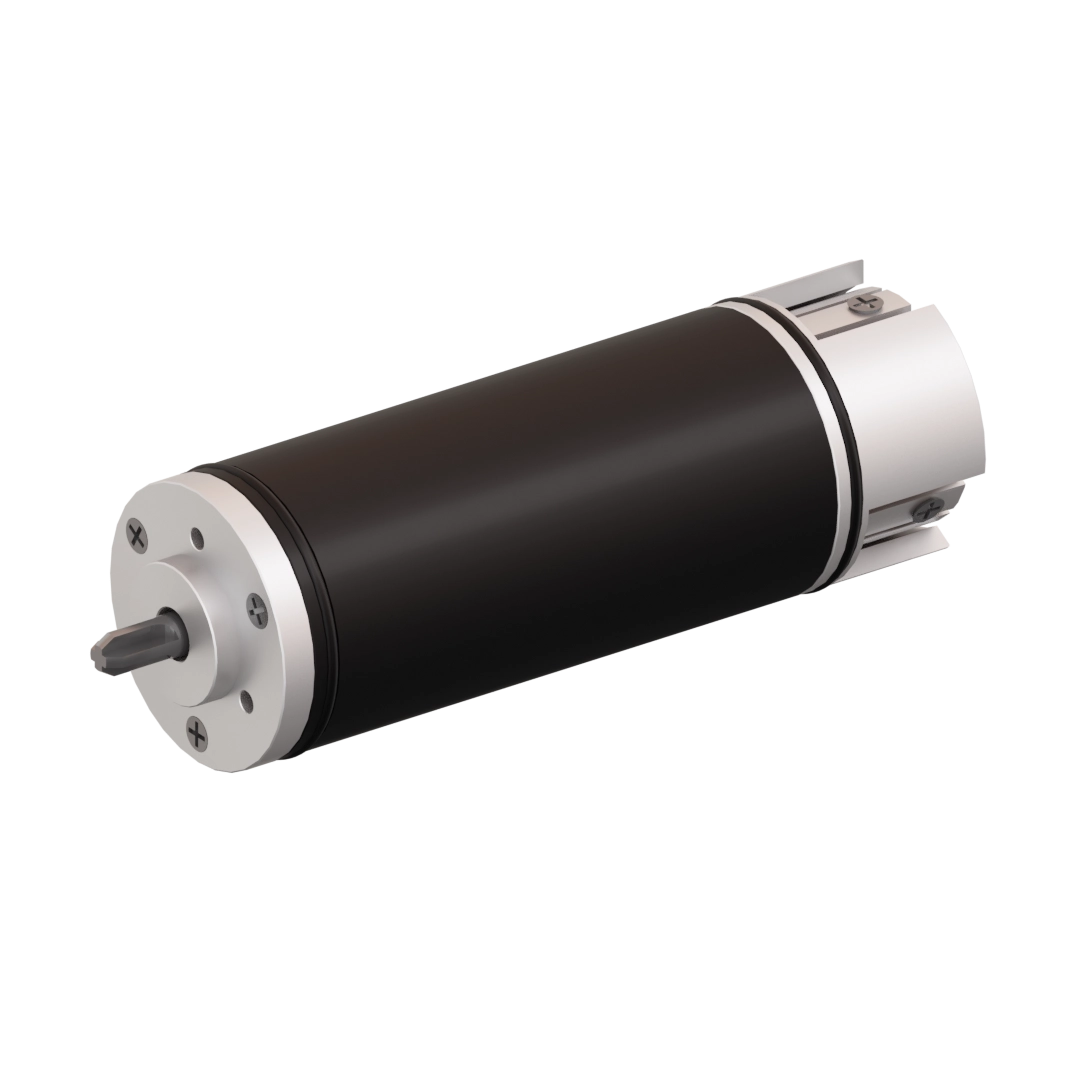

SVTN A 03-1228-06-S-0Coreless BLDC motors
2 Poles Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
12.2 g
12 mm
27 755 rpm
0.50 mNm

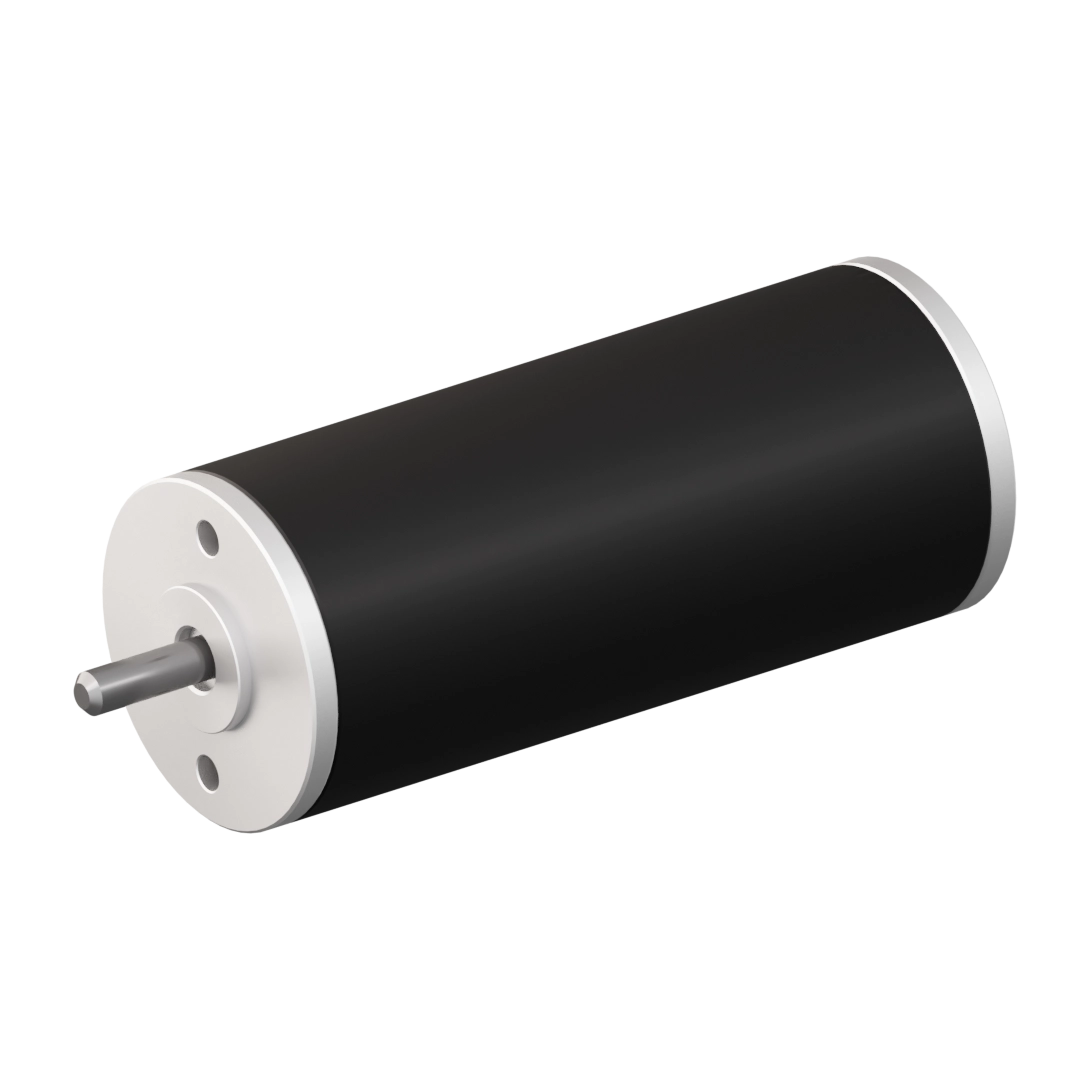

SVTN A 03-1228-06-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
12.2 g
12 mm
27 755 rpm
0.50 mNm
SVTN A 03-1228-06-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
12.2 g
12 mm
27 755 rpm
0.50 mNm
SVTN A 03-1638-06-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
6 102 rpm
1.50 mNm
SVTN A 03-1638-06-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
6 102 rpm
1.50 mNm
SVTN A 03-1638-06-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
6 102 rpm
1.50 mNm

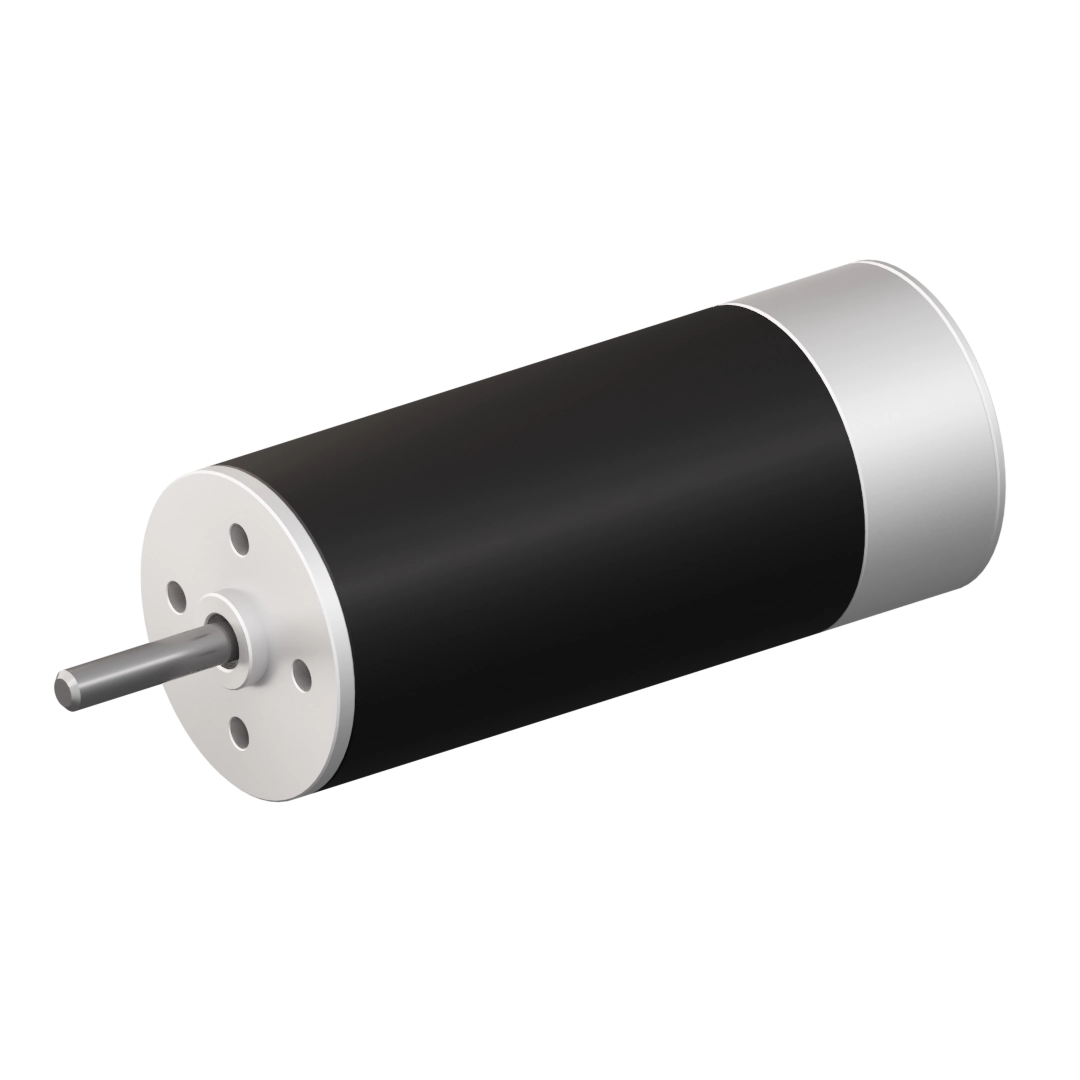

SVTN A 03-1638-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
14 491 rpm
2.00 mNm
SVTN A 03-1638-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
14 491 rpm
2.00 mNm
SVTN A 03-1638-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
27.0 g
16 mm
14 491 rpm
2.00 mNm

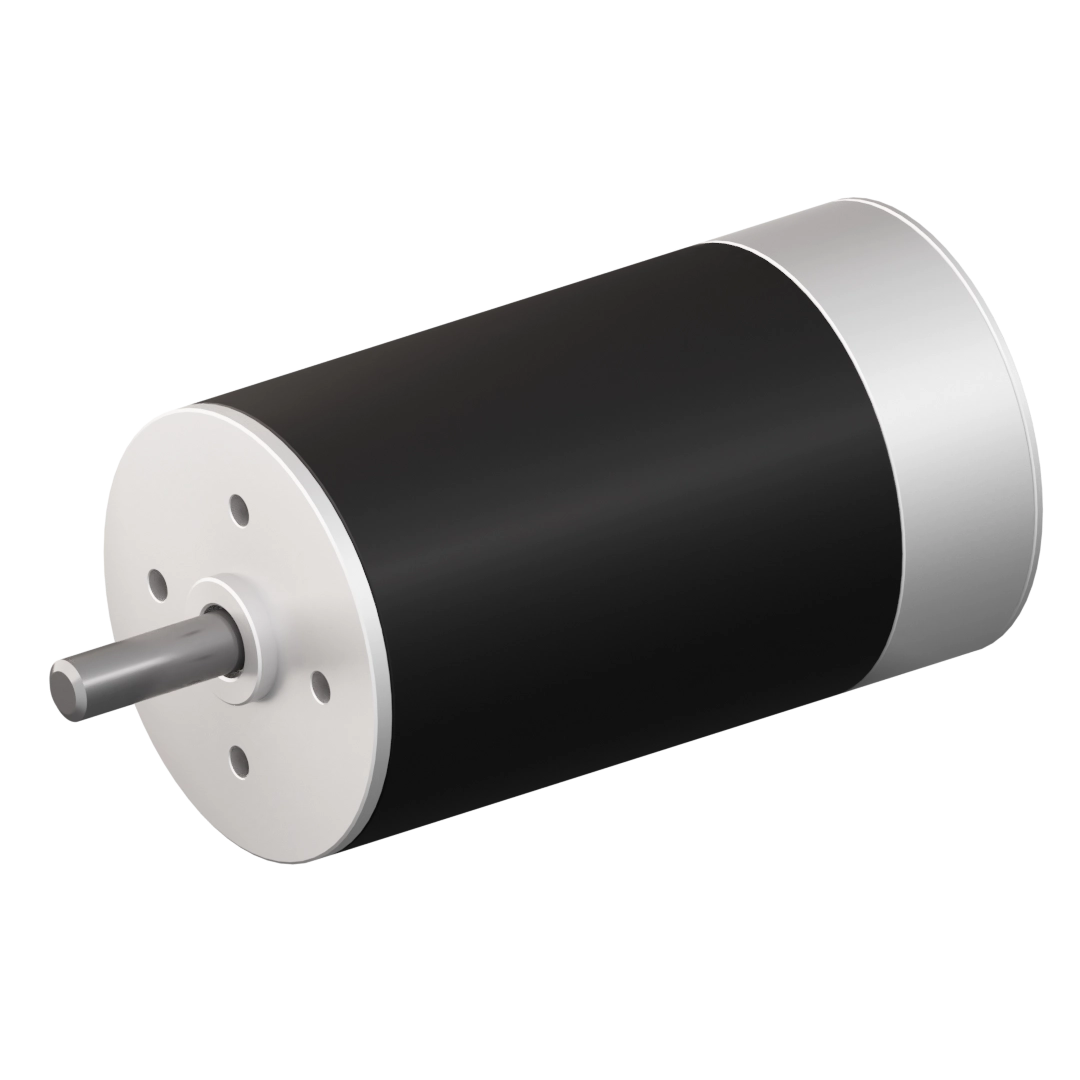

SVTN A 03-2238-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 292 rpm
6.00 mNm
SVTN A 03-2238-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 292 rpm
6.00 mNm
SVTN A 03-2238-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 292 rpm
6.00 mNm
SVTN A 03-2238-18-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 700 rpm
6.00 mNm
SVTN A 03-2238-18-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 700 rpm
6.00 mNm
SVTN A 03-2238-18-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 700 rpm
6.00 mNm
SVTN A 03-2238-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 260 rpm
6.00 mNm
SVTN A 03-2238-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 260 rpm
6.00 mNm
SVTN A 03-2238-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
63.0 g
22 mm
14 260 rpm
6.00 mNm
SVTN A 03-2246-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
10 085 rpm
8.00 mNm
SVTN A 03-2246-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
10 085 rpm
8.00 mNm
SVTN A 03-2246-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
10 085 rpm
8.00 mNm

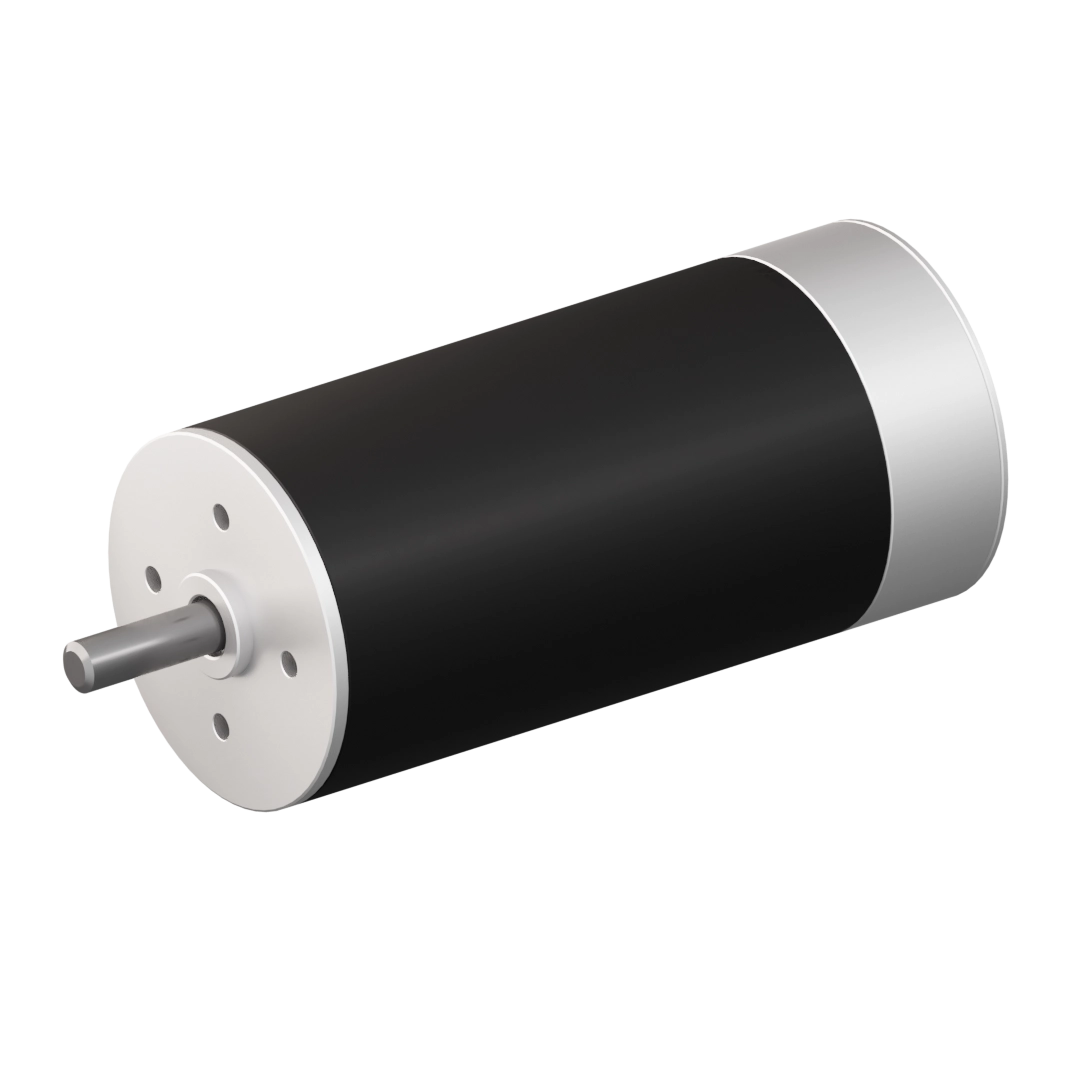

SVTN A 03-2246-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
12 771 rpm
12.00 mNm
SVTN A 03-2246-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
12 771 rpm
12.00 mNm
SVTN A 03-2246-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
79.0 g
22 mm
12 771 rpm
12.00 mNm
SVTN A 03-2452-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 087 rpm
14.00 mNm
SVTN A 03-2452-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 087 rpm
14.00 mNm

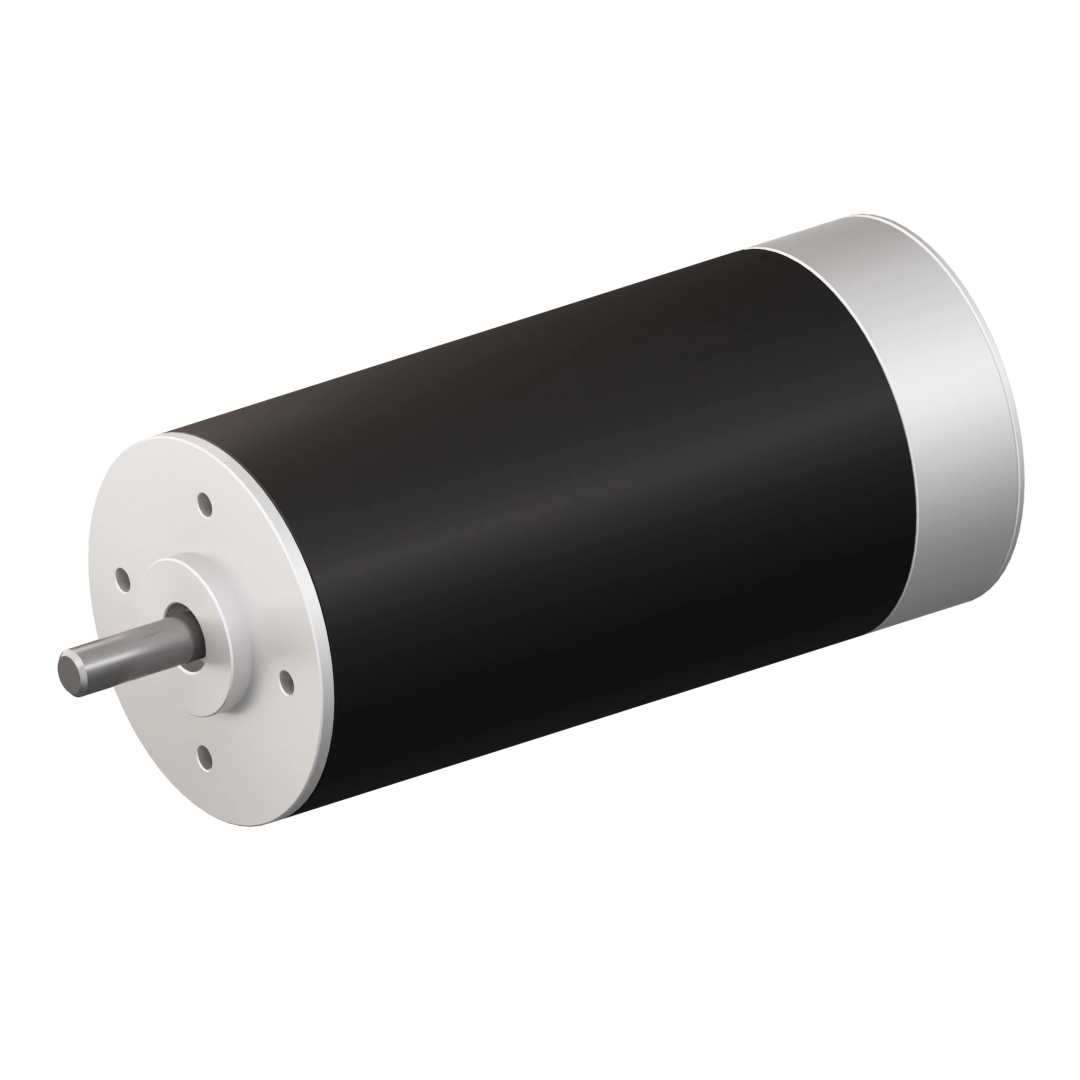

SVTN A 03-2452-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 087 rpm
14.00 mNm
SVTN A 03-2452-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 089 rpm
14.00 mNm
SVTN A 03-2452-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 089 rpm
14.00 mNm
SVTN A 03-2452-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
112.0 g
24 mm
5 089 rpm
14.00 mNm
SVTN A 03-2459-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 958 rpm
14.00 mNm

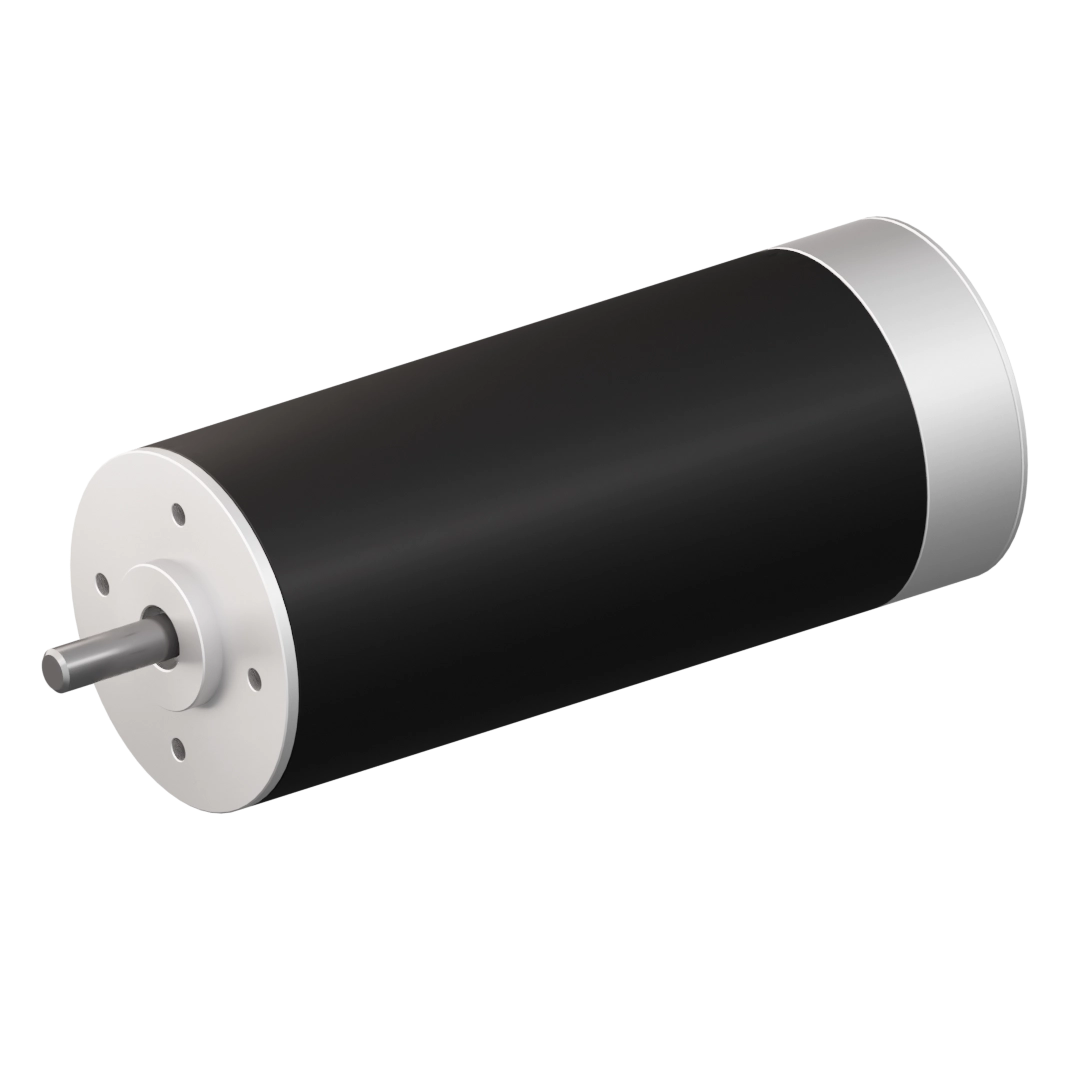

SVTN A 03-2459-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 958 rpm
14.00 mNm
SVTN A 03-2459-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 958 rpm
14.00 mNm
SVTN A 03-2459-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 597 rpm
20.00 mNm
SVTN A 03-2459-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 597 rpm
20.00 mNm
SVTN A 03-2459-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
130.0 g
24 mm
6 597 rpm
20.00 mNm

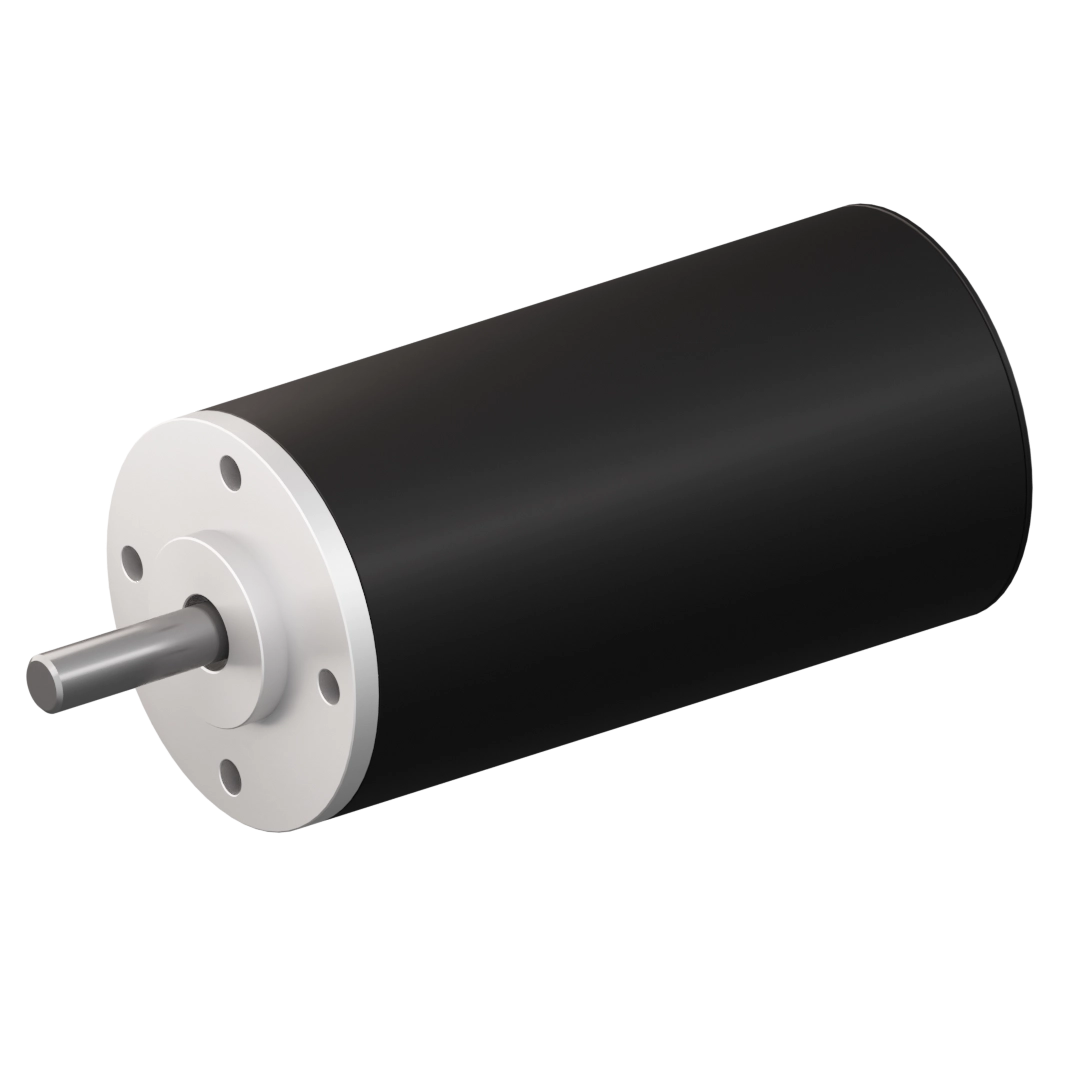

SVTN A 03-2854-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 674 rpm
15.00 mNm
SVTN A 03-2854-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 674 rpm
15.00 mNm
SVTN A 03-2854-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 674 rpm
15.00 mNm
SVTN A 03-2854-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 157 rpm
18.00 mNm
SVTN A 03-2854-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 157 rpm
18.00 mNm
SVTN A 03-2854-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
153.0 g
28 mm
5 157 rpm
18.00 mNm
SVTN A 03-2863-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 264 rpm
25.00 mNm
SVTN A 03-2863-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 264 rpm
25.00 mNm

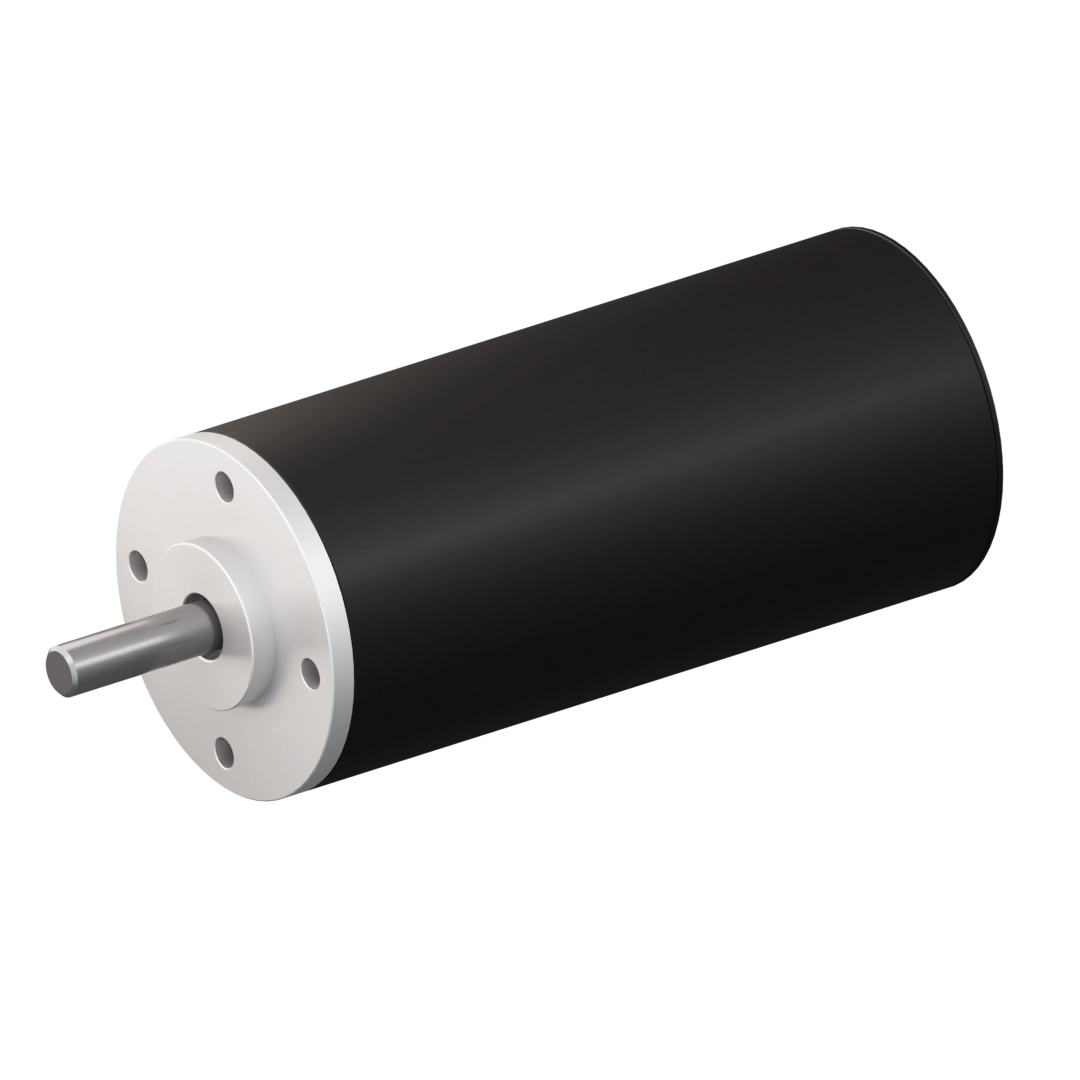

SVTN A 03-2863-12-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 264 rpm
25.00 mNm
SVTN A 03-2863-24-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 033 rpm
25.00 mNm
SVTN A 03-2863-24-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 033 rpm
25.00 mNm
SVTN A 03-2863-24-D-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
188.0 g
28 mm
3 033 rpm
25.00 mNm

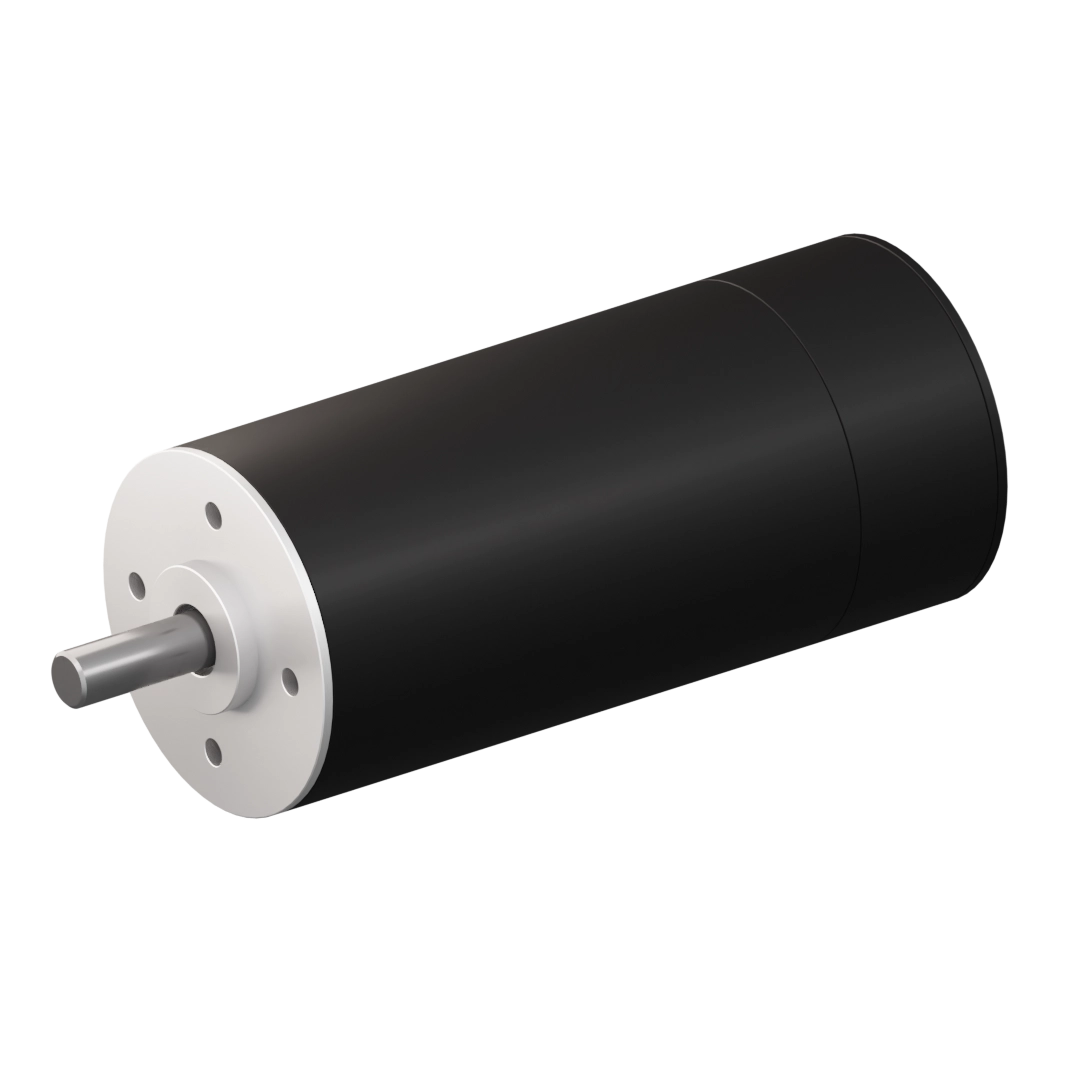

SVTN A 03-3270-12-S-0Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
255.0 g
32 mm
6 623 rpm
25.00 mNm
SVTN A 03-3270-12-S-1Coreless BLDC motors
2 Pole Brushless DC Motors with Integrated Electronics
Coreless BLDC motor Long Lifetime - High Efficiency - Low Noise - High Reliability No Cogging - Low Inertia - Cost-effective
